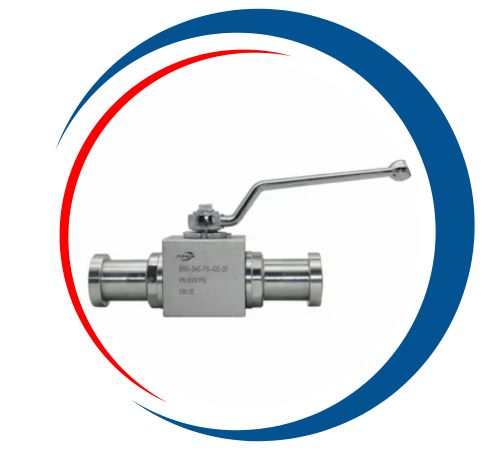

Hydraulic Sae Flange Ball Valve

Home > Hydraulic Sae Flange Ball Valve

Mason Tubefittings, a leading manufacturer and supplier in Hamilton, New Zealand, produces Hydraulic SAE Flange Ball Valves engineered for high-pressure hydraulic systems with robust quarter-turn operation and SAE flange connections per ISO 6162-1/2 standards. These valves, available in sizes from 1/8″ to 2″ (6-50 mm), support working pressures of 3000 PSI (210 bar) or 6000 PSI (420 bar), featuring compact block body designs like BKH, MKH, or innovative KH for optimal flow control and easy installation. Ideal for on/off service in demanding hydraulic applications, they ensure leak-proof performance with O-ring seals and secure bolting.

Hydraulic Sae Flange Ball Valve Supplier in Hamilton, SAE Flanged End Ball Valve Price List in Tauranga, SS316 Ball Valves Manufacturer in Auckland, Hexagon shape Hydraulic Sae Flange Ball Valve in Dunedin, Hydraulic Sae Threaded Ball Valve Exporter in Tauranga, Hydraulic Sae Compression Ball Valve Manufacturer in Wellington, Hydraulic Sae Flange Ball Valve In Hamilton, New Zealand.

Hydraulic SAE Flange Ball Valves are primarily constructed from carbon steel or stainless steel 316 for the body, ball, and stem, with POM (polyacetal) seats and NBR or FPM O-rings for sealing. These materials deliver tensile strengths exceeding 500 MPa in steel grades, operating temperatures from -30°C to 100°C, and high flow coefficients (Kv up to 319 for 2″ size) for efficient throughput with minimal pressure drop. The design provides bubble-tight shutoff, corrosion resistance in hydraulic fluids, and durability under cyclic loading, with full-port options in KH models reducing assembly points for enhanced reliability.

KhpHydraulic Sae Flange Ball Valve Specification

Size Range: 1/8″ TO 2″ / 6 MM TO 50 MM
Design: Quarter Turn Type
Material: Steel / SS316
Working Pressure: 3000 PSI / 6000 PSI
Connections: SAE Flanged End, Code 61 / Code 62
Brand: TU-LOK
Applicable Medium: General Hydraulic Oil (Gas Application on request)
Temperature Range for Steel Ball Valves: -20°C to +100°C
Temperature Range for SS316 Ball Valves: -30°C to +100°C
Ball Seats: POM (POM standard option, other materials on request)
Stem and Adaptor Sealing Materials: NBR (NBR standard option, other materials on request)

Top Hydraulic Sae Flange Ball Valve Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Sae Flange Ball Valve in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically positioned in the New Zealand, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands

types of ball valves

Valve Type	BKH / BKHP	MKH / MKHP	KH
Diameter Size	1/8″ to 1″	1 1/4” to 2	1/2” to 3”
Working Pressure	Up to 800 Bar	Up to 420 Bar	Up to 420 Bar

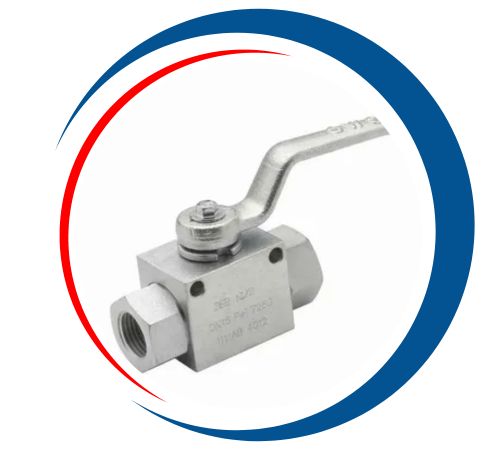

Body Design	Square shape	Round / Hexagon shape	Round shape
Connection Type	Threaded Compression Flange end	Threaded Compression Flange end	Flange end

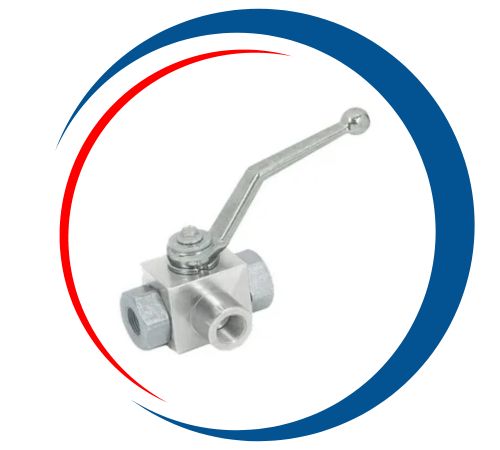

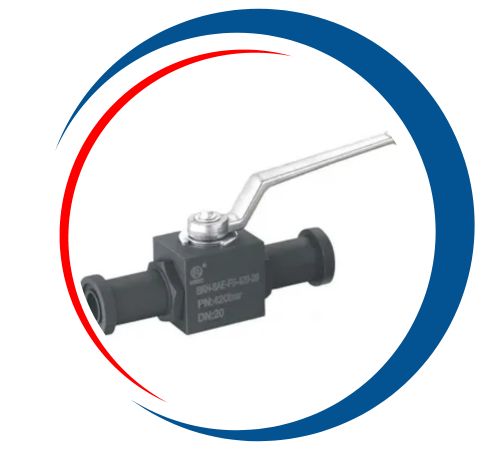

Types of Hydraulic Sae Flange Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Hydraulic Sae Ball Valve Supplier In Auckland, SAE Flanged End Ball Valve Exporter In Hamilton, SS316 Ball Valves Dealer In Tauranga, Hydraulic Sae Hexagon shape Ball Valve Supplier in Hamilton, Hydraulic Sae Threaded Ball Valve Price List in Tauranga, Hydraulic Sae Compression Ball Valve Manufacturer in Auckland, Hydraulic Sae Flange end Ball Valve in Dunedin, Hydraulic Sae Ball Valve Exporter in Tauranga, Hydraulic SAE Flanged End Ball Valve Manufacturer in Wellington, Hydraulic Sae Flange Ball Valve In Hamilton, New Zealand.

Ball valve with SAE flange flow rate

Nominal Diameter (mm)	Nominal Diameter (inch)	Kv (m3/h)	Cv (gal/min)
15	1/2″	19,4	22,6
20	3/4″	45,6	53,0
25	1″	71,5	83,1
32	1 1/4″	105	122,1
40	1 1/2″	170	197,7
50	2″	275	319,8
65	2 1/2″	507	589,5
80	3″	905	1052,3
100	4″	1414	1644,2
125	5″	2362	2746,5
150	6″	3694	4295,3

Hydraulic Sae Flange Ball Valve Supplier in Hamilton, New Zealand

Mason Tube Fittings is a leading supplier and Stockist of premium Hydraulic Sae Flange Ball Valve in Hamilton, New Zealand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Sae Flange Ball Valve Uses

Hydraulic SAE Flange Ball Valves serve as reliable on/off devices in high-pressure hydraulic power units, mobile machinery, and industrial systems for precise flow isolation. They excel in oil and gas pipelines, construction equipment, test benches, and heavy-duty circuits where quick actuation and SAE flange compatibility simplify integration. Additional roles include pressure/flow control in marine hydraulics, injection systems, and process skids, offering low maintenance and safety in environments up to 6000 PSI with options for actuators or locking devices.
