Inconel 625 Tube Fittings

Home > Inconel > Inconel 625 Tube Fittings

Based in Hamilton, New Zealand, Mason Tubefittings is your trusted local source for precision-engineered Inconel 625 tube fittings. We understand the critical nature of high-performance fluid systems, and we pride ourselves on manufacturing and supplying components that stand up to the most demanding conditions. Our dedication to quality ensures that every fitting we produce offers the exceptional reliability and longevity that industries across the country have come to depend on for their most challenging applications, providing robust solutions from the heart of the Waikato.

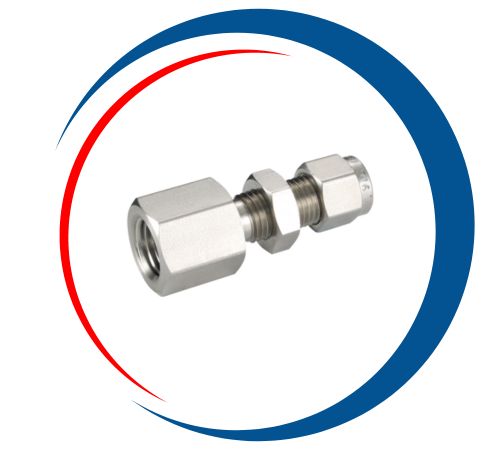

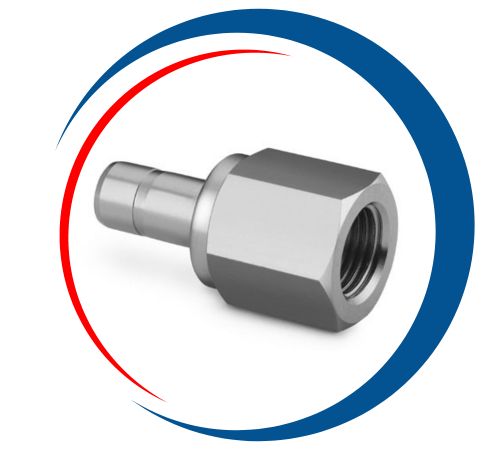

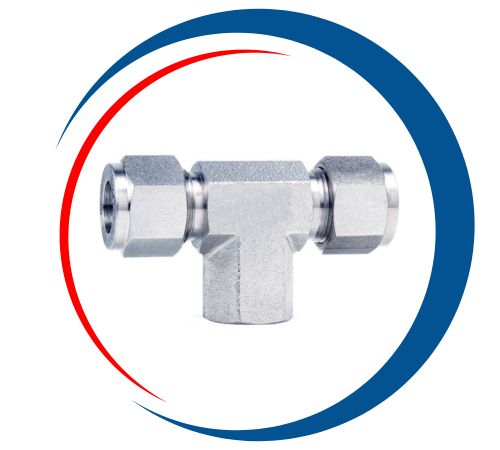

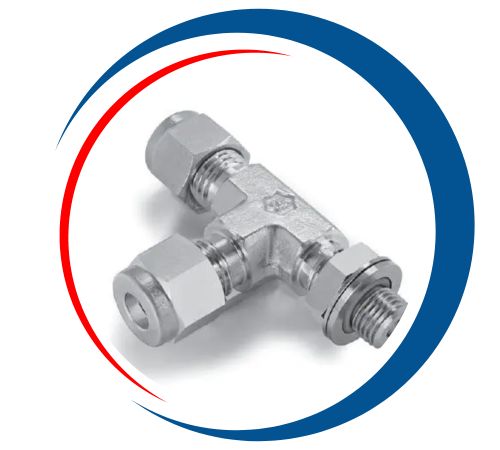

Inconel 625 Female Adapter Manufacturer in Hamilton, Alloy 625 Hydraulic Tube Fittings, Inconel 625 Female Branch Tee Exporter in Tauranga, Inconel 625 Bulkhead Female Connector Supplier in Auckland, Inconel 625 Female Run Tee Supplier in Dunedin, Inconel 625 Positionable Male Run Tee In Auckland, Inconel 625 Tube Fittings In Dunedin, Inconel 625 Male Branch Tee Price List in Wellington, Alloy 625 Tube Fittings Manufacturer in Hamilton, Inconel 625 Reducer Union Exporter in Tauranga, New Zealand.

The strength of these fittings comes from the superb composition of Inconel 625 itself, a nickel-chromium alloy heavily fortified with molybdenum and niobium. This specific blend grants it truly impressive mechanical properties, including remarkable tensile strength and outstanding fatigue resistance. Perhaps most importantly, it retains this robust strength and toughness across an incredibly wide temperature range, from cryogenic cold up to intense heat, making it far more capable than ordinary stainless steels in punishing environments.

Inconel 625 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6010 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Inconel 625 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Inconel 625 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Inconel 625 Tube Fittings

Inconel 625 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Inconel 625	N06625	2.4856	NC22DNB4M	NiCr22Mo9Nb	NCF 625	NA 21	ХН75МБТЮ	ЭИ602

Inconel 625 Instrumentation Tube Fittings Price in Hamilton, Inconel 625 Male Branch Tee Supplier in Tauranga, Inconel 625 Bulk Head Female Connector Manufacturer in Auckland, Inconel 625 Single Ferrule Tube Fittings Price in Dunedin, Inconel 625 Male Run Tee Supplier And Manufacturer in Wellington, Inconel 625 Male Elbow In Hamilton, New Zealand.

Largest Manufacturer and Supplier of Inconel 625 Tube Fittings in Hamilton, New Zealand

Top Inconel 625 Tube Fittings Manufacturing Company in Hamilton At Mason Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Inconel 625 Tube Fittings in Hamilton, New Zealand. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the New Zealand, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel 625 Tube Fittings Uses

You’ll typically find Inconel 625 tube fittings hard at work in situations where failure is simply not an option. They are essential in chemical processing plants handling corrosive acids, within the high-pressure piping of offshore oil and gas platforms, and in the demanding environments of aerospace and marine engineering. Their resistance to oxidation and pitting also makes them ideal for power generation systems and pollution control equipment, ensuring system integrity and safety where lesser materials would quickly succumb to the extreme conditions.
