Inconel Condensate Pots

Home > Inconel > Inconel Condensate Pots

Based in the industrially rich city of Hamilton, New Zealand, Mason Tubefittings has built a solid reputation as a trusted manufacturer and supplier of high-performance fluid handling components. We specialise in the precision engineering of robust Inconel condensate pots, designed to meet the rigorous demands of various industrial sectors. Our commitment lies in delivering not just a product, but a reliable solution that ensures the accuracy and longevity of critical pressure and temperature measurement systems, supporting the backbone of local and international industry with unwavering quality.

Inconel Type A Condensate Pot with Zinc Plating Manufacturer Hamilton, Inconel Condensate Pot Type B Dealer Tauranga, Inconel Type C Condensate Pots with 4 Ports Manufacturer Supplier Auckland, 600 Inconel Condensate Pots Type A Exporter In Dunedin, Inconel Type B Condensate Pot with Galvanized Plating Manufacturer Wellington, Inconel Type C Condensate Pot with Red Oxide Coated In Hamilton, New Zealand.

Crafted from Inconel alloys, these pots are defined by their exceptional composition of nickel and chromium, which grants them a formidable resistance to oxidation and corrosion. This material foundation provides outstanding mechanical properties, including high tensile strength and impressive creep resistance, allowing them to perform reliably under extreme temperatures and intense pressures. They maintain their structural integrity in the most challenging environments, ensuring dependable service where ordinary materials would quickly succumb to failure, making them a cornerstone of safe and efficient operations.

Inconel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Inconel Condensate Pots Chemical Composition

Grade	Ni	Cr	Fe	C	Mn	S	Si	Cu
Inconel Condensate Pots	72.0 min	14.0 – 17.0	6.0 – 10.0	0.15 max	1.0 max	0.015 max	0.5 max	0.5 max

Sizing Of Inconel Condensing Pots

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Top Inconel Condensate Pots Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel Condensate Pots in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically positioned in the New Zealand, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

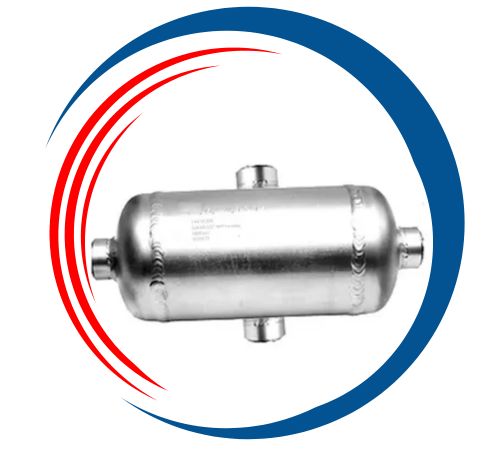

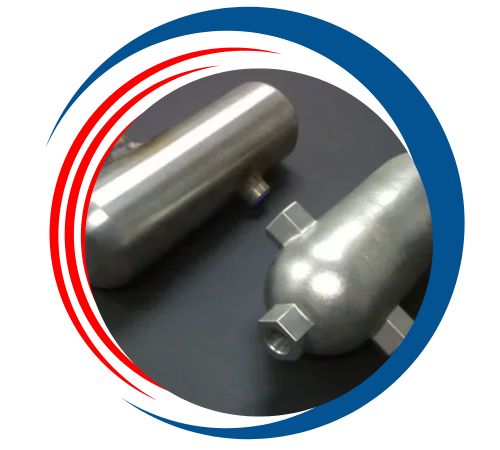

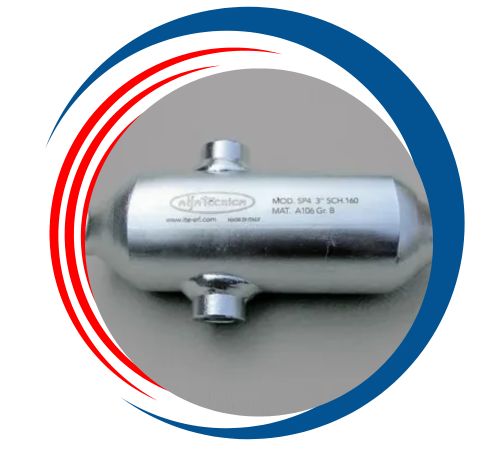

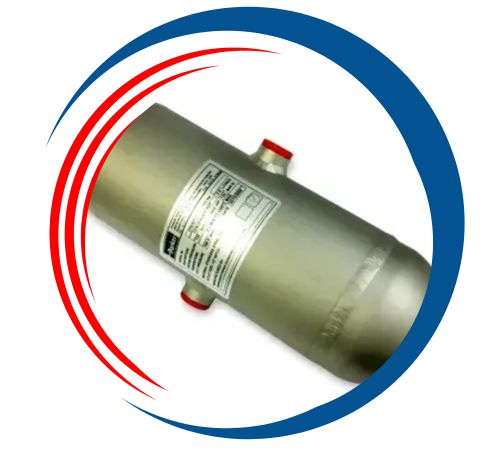

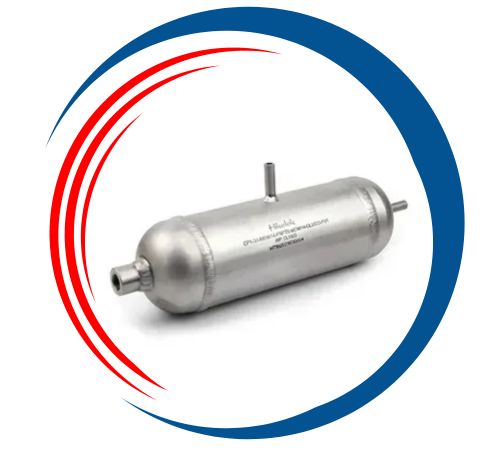

Types of Inconel Condensate Pots

Equivalent Grades of Inconel Condensate Pots

STANDARD	UNS	WERKSTOFF NR.	JIS	AFNOR	BS	GOST	EN
Inconel Condensate Pots	N06600	2.4816	NCF 600	NC15FE11M	NA 13	МНЖМц 28-2,5-1,5	NiCr15Fe

Inconel Condensate Pot Type A Price in Hamilton, Inconel Type B Condensate Pot with Zinc Plating Manufacturer Supplier in Tauranga, Alloy 800 Type C Condensate Pots Manufacturer in Auckland, Inconel Type A Condensate Pot with Galvanized Plating Price in Dunedin, Inconel Type B Condensate Pot with Red Oxide Coated Supplier And Manufacturer in Wellington, 601 Inconel Type C Condensate Pot In Hamilton, New Zealand.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel Condensate Pots Supplier in Hamilton, New Zealand

Mason Tube Fittings is a leading supplier and stockist of premium Inconel Condensate Pots in Hamilton, New Zealand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel Condensate Pots Uses

The primary use for our Inconel condensate pots is in protecting sensitive instrumentation, such as pressure gauges and transmitters, within steam systems and other high-temperature processes. By creating a liquid seal, they prevent hot, corrosive steam from directly damaging the devices, ensuring accurate readings for critical control and safety functions. You will find them hard at work in power generation facilities, oil and gas refineries, and chemical processing plants, anywhere that demands uncompromising reliability for maintaining system efficiency and safety over the long term.
